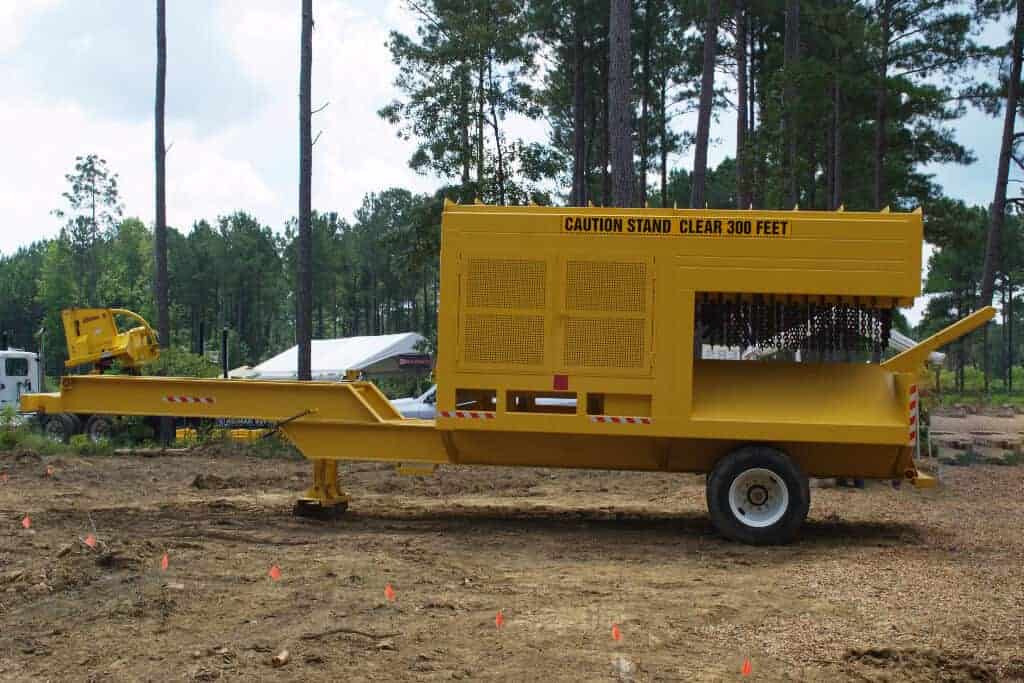

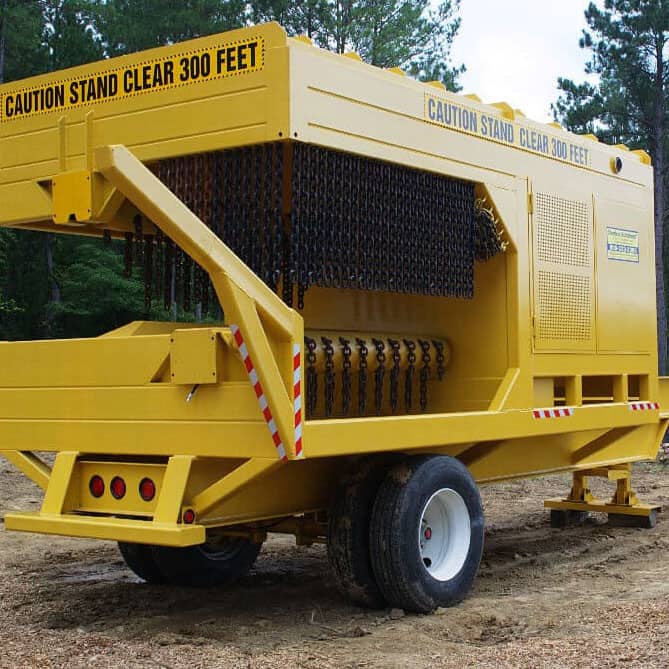

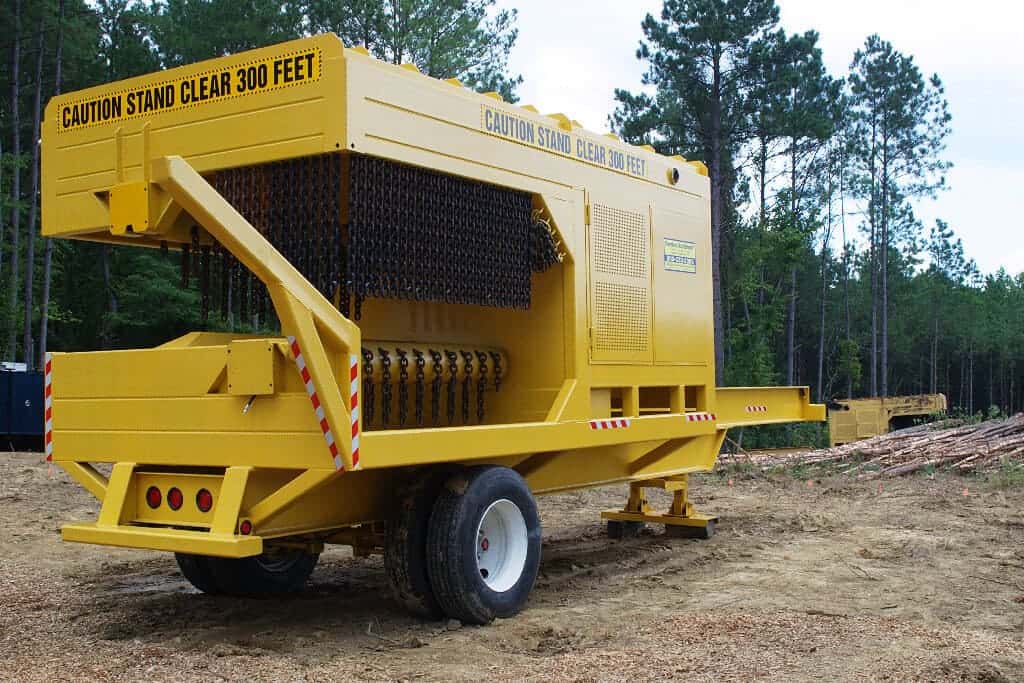

The same great Chambers Delimbinator but this one is mounted on a trailer with a fifth wheel king pin hitch.
Makes for easy transport and its higher off the ground.

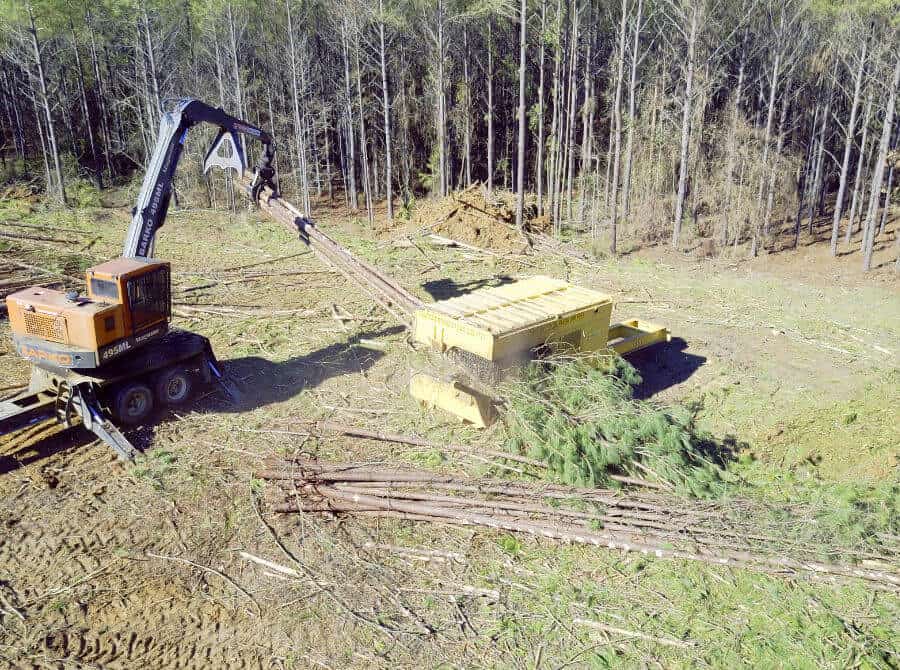

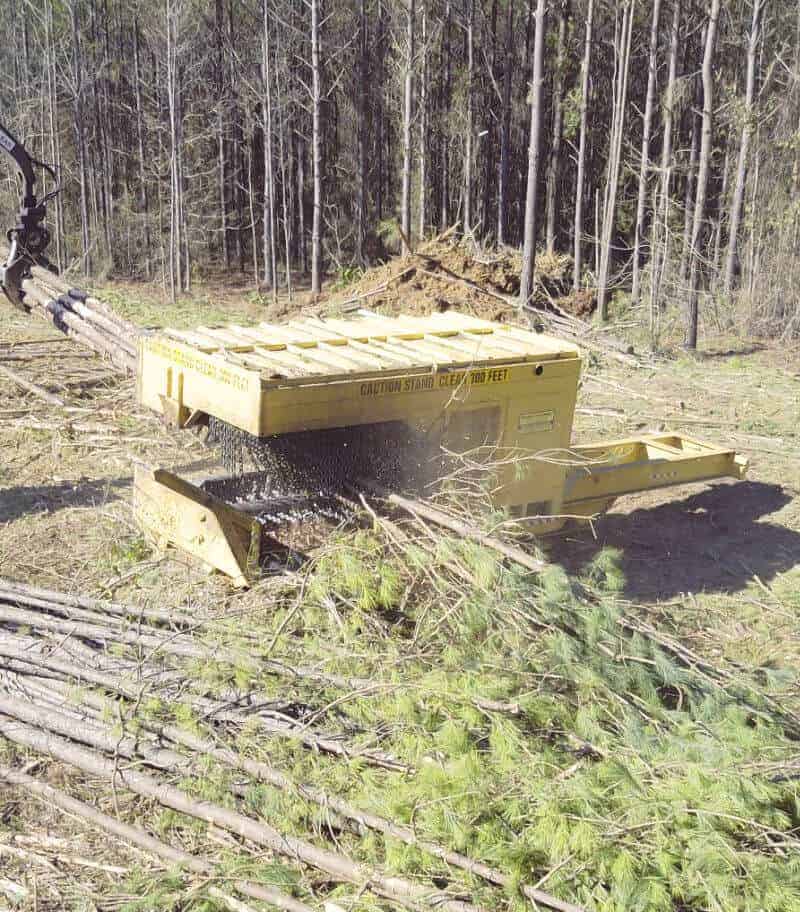

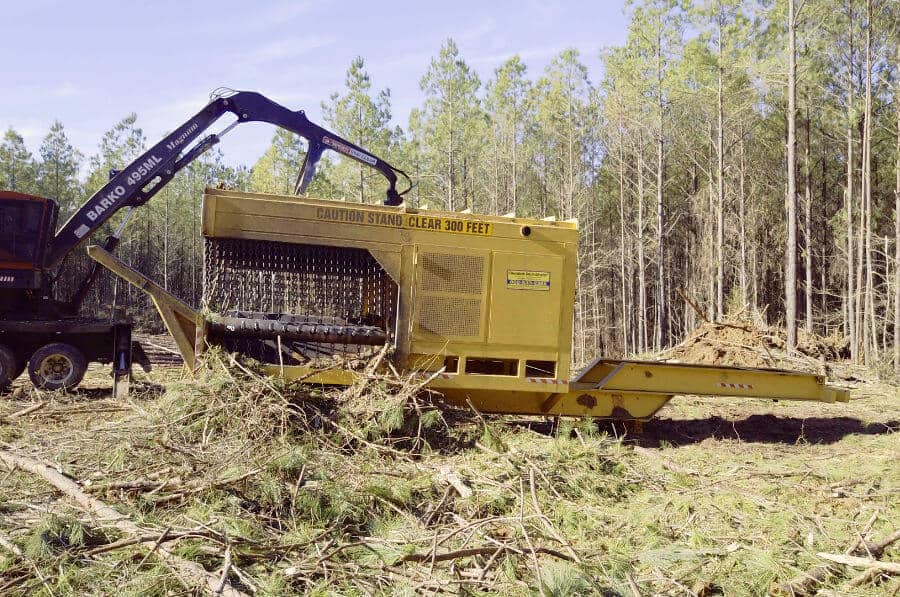

Chambers Delimbinator is now offering a Delimbinator mounted on a fifth wheel trailer. This Delimbinator is much higher off the ground making it easier for the loader to access the flail pan area when debris is piling up at the machine.

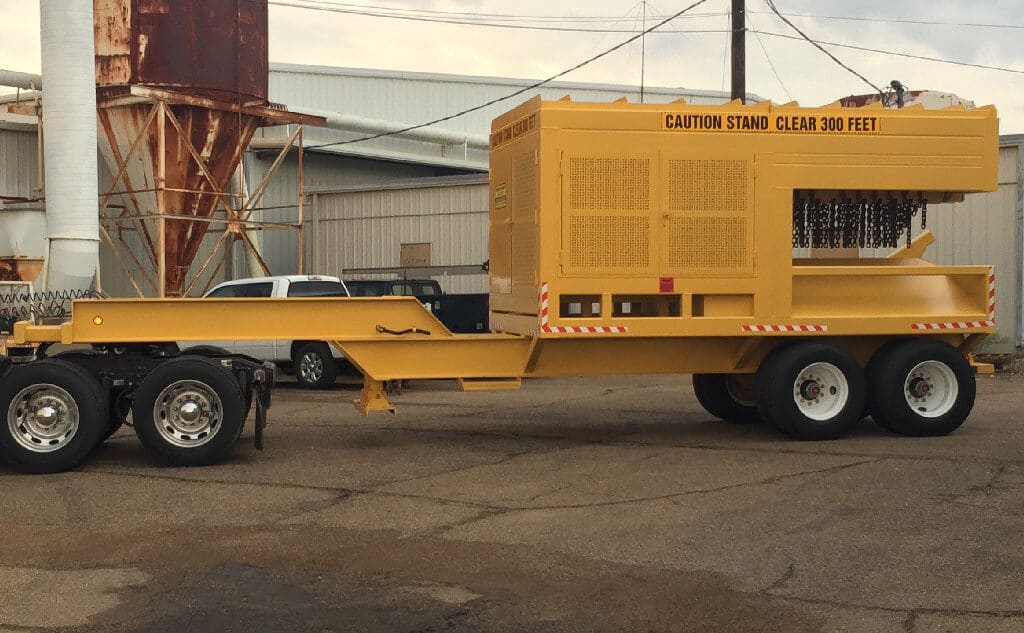

This Delimbinator will hook to any of your trucks for transport just like a loader.
Video embedding powered by Webilop
| Size | 35' (long) x 8'8" (wide) x 12'6" (high) |
|---|---|
| Weight | Approximately 25,000 lbs. |
| Flail Area | 7'8" deep x 8'8" wide |
| Drum Length | 88" top and bottom drums. |
| Drum Diameter | 10 3/4" outside diameter |
| Drum Shaft | 3 1/2' C.R.S. shaft locked in drums with taper locks and keys. No Weld |
| Feed Opening | 27" |
| Flail Chains | 5/8" hardened short length chain; 44-chain top, 44-chain bottom |
| Bearing | Heavy duty flange, self aligning, expansion type front bearing and heavy duty piloted flange back bearing. |
| Engine | John Deere 6068. 250Hp 6.8 Liter turbocharged tier 3 diesel engine. John deere warranty and service. Electronic control panel has high temperature and low oil shutoff. |
| Engine Cooling | Custom designed oversized cooling system. The system features a bolted (not brazed) tank design preventing leaks. Radiator is vibration isolated. |
| Drive | 5 Groove Power Band drive for each drum, engaged by 14 inch Kraft clutch PTO drive. No gear boxes or hydraulics on drive or feed works. |
| Doors | Belt guards and curtain chains provided for safety. |
| Trailering | Machine is supported by one heavy duty axle with dual wheels and 11.00 x 22.5 tires. The trailering package includes fifth wheel king pin hitch, air brake hook-up, reserve tank, lights, and reflective tape. |
